Three Phase Input DC Output 110VDC Battery Charger

Product Description

Single phase or three phase input DC output 110vdc Battery Charger
Product Description

PZDK Series of High Frequency Switch DC Power System

General

PZDK series of high frequency switch DC power system can be used as DC Power Supply for control signal, electromagnetic operation mechanism of substation and large power plant. They are new generation of products which are specially designed by considering to the requirements of high reliability and intelligence in power system. It is the updated product for current DC device and the substitute for imported product.

The products have the advantages of high reliability and high intelligence, consisted of many independent high frequency switches power supply modules. The modules are hot pluggable which make the maintenance and overhaul of the system easier and more convenient.

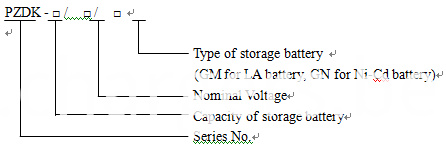

Model Description

Capacity of storage battery:

Lead Acid storage battery: 10~3000Ah;

Nickel Cadmium Storage Battery: 10-1000Ah

Nominal Voltage DC voltage: 24V, 48V, 110V, 220V.

Panel Combination Solution


  • Charging Panel: 1 pc; feed control & battery mounting cabinet: 1pc; control: 6 circuits, closing: 6 circuits, provided with lead acid battery with capacity of 65Ah and single group of battery with capacity of less than 65Ah. Can be equipped with AC distribution and metering.
  • Charging Panel: 1 pc; feed control panel: 1pc; battery mounting cabinet: 1~2 pcs; control: 6 circuits, closing: 6 circuits, provided with lead acid battery with capacity of 100~200Ah and single group of battery with capacity of less than 100~200Ah.
  • Charging Panel: 1 pc; feed control & battery mounting cabinet: 2 pcs; control: 2×6 circuits, closing: 2×6 circuits, provided with lead acid battery with capacity of 200~400Ah and single group of battery with capacity of less than 200~400Ah.
  • The panel combination solution and configuration can be flexibly designed as per customers` requirements.


Main Features

  • Consisted of many independent modules, N+1 backup. By using autonomous current-sharing technology, maximum unbalance degree between the modules is less than 5%.
  • Power supply modules are hot pluggable, convenient to maintenance and overhaul.
  • The modules are in good isolation, providing complete self-protection system.
  • Good safety, Grade III lightning stroke protection and high electric insulation protection are used in the system.
  • By using intelligent management, automatic complete the whole process from charge, equalization charge, floating charge to modules switching, and perform the temperature compensation to storage batter, effectively extend service life of storage battery.
  • The operation menu of monitoring unit is in Chinese or English, intuitive display and easy operation.
  • Four tele-function, telemeter, tele-control, tele-signaling and tele-regulation, realize unattended operation.
  • Optional configuration: insulation monitor, the patrol of single battery`s voltage, and the Other function.

Technical Parameter


  • Input voltage: AC 380V ± 20%;
  • Voltage precision: ≤±5%;
  • Current precision: ≤±5%;
  • Ripple: ≤±5%;
  • Efficiency: ≥92%;
  • Noise: ≤ 50dB

Order Information

  • Please state type, specification, color, size of cabinet.
  • Special requirements can be designed.
  • Special requirement about storage battery, please specify the manufacturer.
  • If the remote communication or control is required, please specify the method and specification.

Specification of single phase input DC output 110vdc battery charger 50A

Sl. No.

Description

Offered

1

Type of rectifier

Thyristor (3 phase full controlled bridge)

2

Rated Input voltage range

AC 380V± 10%

3

Rated Frequency

50 Hz -60Hz

4

No of Phase

3 Phase

5

Output voltage

DC 0-150 V

6

Output current

DC 0-50 A

7

Charging operating control

Boost and floating charge,automatic with manual operation

8

Standard

As per Latest Edition of applicable IEC-60146

9

Continuous current rating

110 % of rated current

10

Efficiency

80% at full load.

11

Voltage regulation

± 1% for 10% input voltage variations and 5-100% loadvariations.

12

Ripple voltage

Less than 3% rms (without Battery connected)

13

Cooling system

Forced

14

Operating temperature

0 to 50 ℃

15

Humidity

95%

16

Audible noise

≤ 65dB


Looking for ideal Three Phase Battery Charger Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Output 110VDC Battery Charger are quality guaranteed. We are China Origin Factory of Three Phase DC Input Battery Charger. If you have any question, please feel free to contact us.
